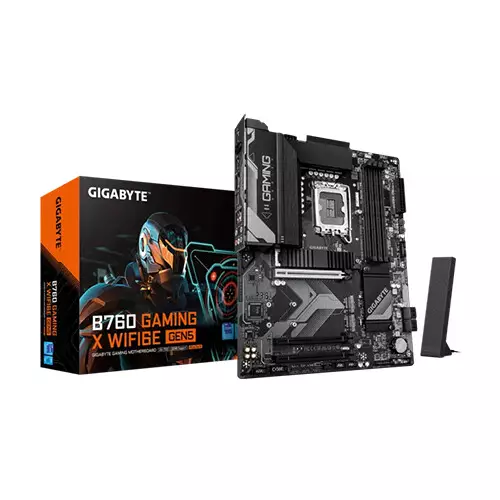

Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard

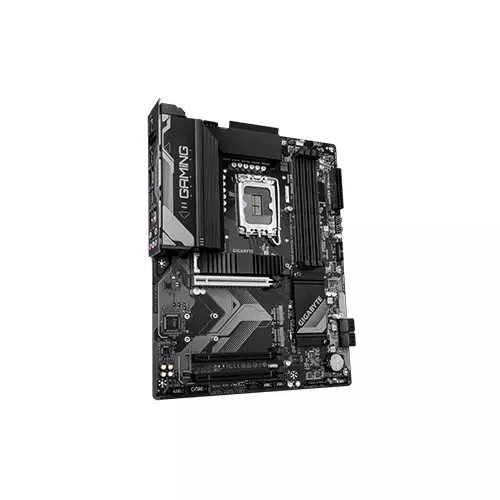

Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard - Image 2

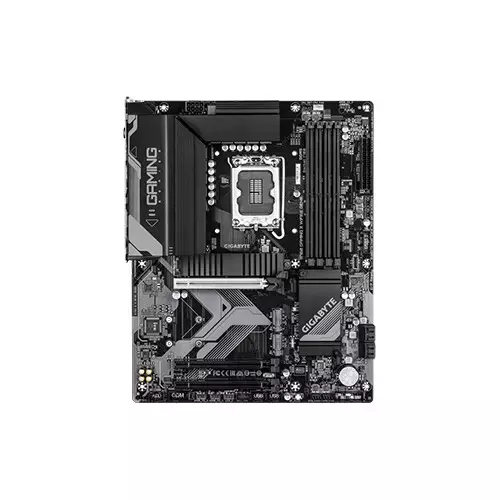

Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard - Image 3

Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard - Image 4

Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard

Original price was: ৳ 27,000.Current price is: ৳ 26,000.

Key Features

Chipset: Intel B760 Express Chipset
Support socket: LGA1700
Memory: 4 x DDR5 up to 256 GB
Wireless: Intel Wi-Fi 6E AX210 and BT 5.3

Chat Through WhatsApp

Category: Gigabyte (Intel)

Description
Reviews (0)

Category	Details
Supported CPU	LGA1700 socket: 14th, 13th & 12th Gen Intel Core, Pentium Gold, Celeron
Chipset	Intel B760 Express Chipset
BIOS	1×256 Mbit AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0)
Memory Slots	4× DDR5 DIMM
Max Memory	Up to 256GB (64GB per DIMM)
Memory Architecture	Dual Channel
Memory Support	ECC & Non-ECC UDIMM (Non-ECC mode), XMP Supported
Storage (CPU)	1× M.2 PCIe 4.0 x4/x2 (22110/2280)
Storage (Chipset)	2× M.2 PCIe 4.0 x4/x2 (22110/2280), 4× SATA 6Gb/s
RAID Support	RAID 0, 1, 5, 10 (SATA)
Integrated Graphics	Intel® HD Graphics
Video Output	1× DisplayPort 1.2 (4K@60Hz), 1× HDMI 2.1 (4K@60Hz)
LAN	Realtek 2.5GbE LAN (2.5G/1G/100Mbps)
Wi-Fi	Intel Wi-Fi 6E AX210 (2.4/5/6GHz, 160MHz)
Bluetooth	Bluetooth 5.3
Audio	Realtek HD Audio, 2/4/5.1/7.1 Channel, S/PDIF Out
Expansion Slot (CPU)	1× PCIe 5.0 x16
Expansion Slot (Chipset)	2× PCIe 3.0 x1
Internal Power	24-pin ATX, 8-pin ATX 12V
Fan & Pump Headers	CPU Fan, CPU Pump, 4× System Fan/Pump
RGB Headers	3× ARGB Gen2, 1× RGB
Internal I/O	USB-C Gen2, USB 3.2 Gen1, USB 2.0, TPM, Serial, Q-Flash Plus
Rear I/O Ports	USB 3.2 Gen2, USB-C, USB 3.2 Gen1, USB 2.0, HDMI, DP, RJ-45, 6× Audio Jacks
USB Support	USB 3.2 Gen2 / Gen1 / USB 2.0
Operating System	Windows 11 & Windows 10 (64-bit)
Special Features	GCC, Q-Flash, Q-Flash Plus, Smart Backup
Hardware Monitoring	Voltage, Temperature, Fan Speed, Pump Flow, Fan Fail Warning
Form Factor	ATX (30.5 × 24.4 cm)
Warranty	3 Years
