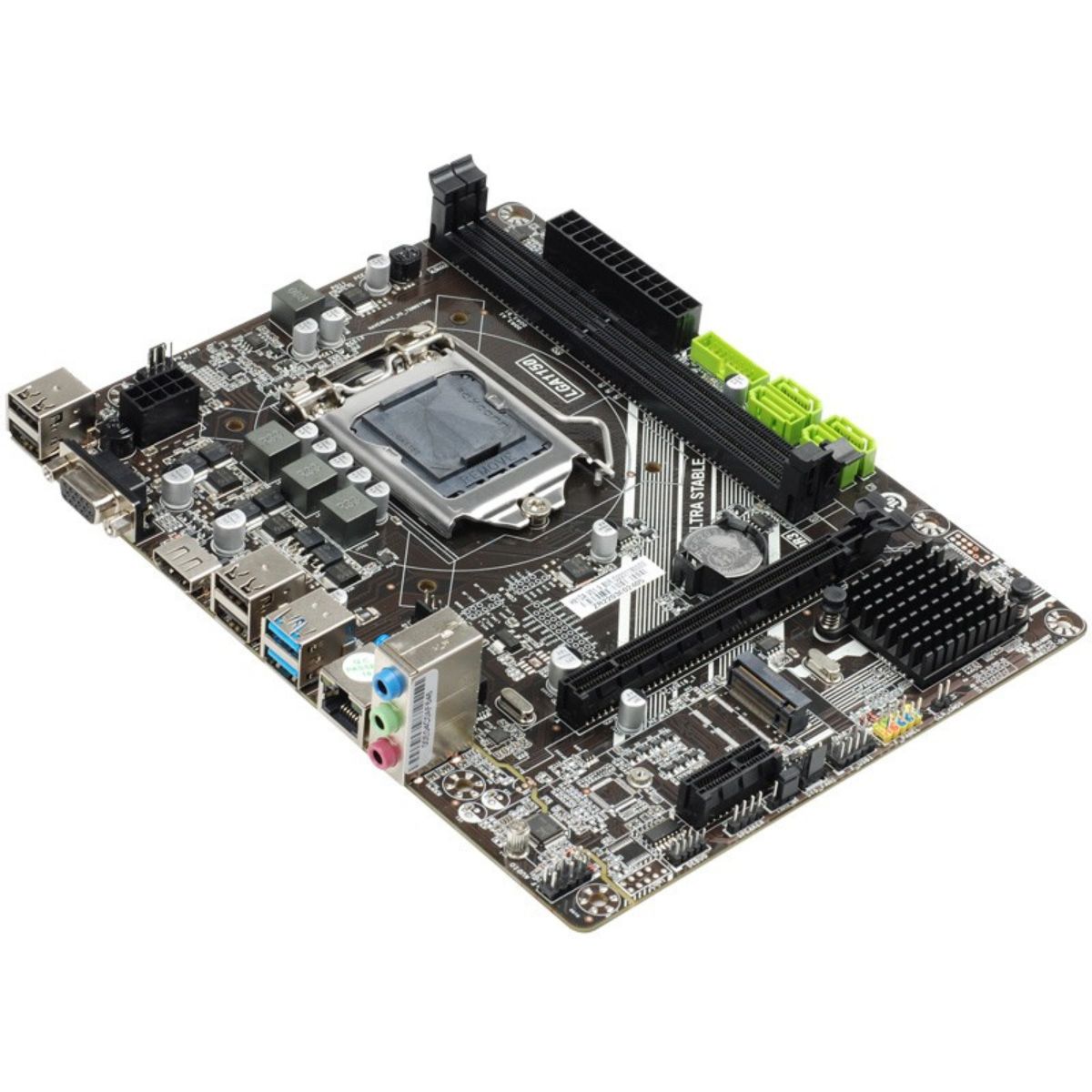

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard

Category: Esonic Motherboard

Main Features
Chipset	Intel H110 Chipset
Generel information
Audio Chipset	Realtek Chip, ALC 6-channel audio
Back Panel I/O Ports	1 x VGA Port 1 x HDMI Port 1 x LAN (RJ45) Port 2 x USB 3.1 Gen 1 Ports(Blue) 4 x USB 2.0 Ports 3 x flexible audio jacks
Dimension	215 x 170mm
Graphic	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HD / VGA ports
INTERNAL I/O	1 x USB 3.1 Gen 1 connector（19pin), supports 2USB 3.1 Gen 1 ports, 1 x USB 2.0 connector， supports 2USB 2.0 ports 4 x SATA 6Gb/s Ports 2 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector
LAN	Realtek Chip, 1 x 100M（Optional 1000M）Lan
Processor	Support Intel® Socket 1151 for 6th/7th/8th/9th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Slots	1 x PCIe x16 3.0/2.0 slot 1 x PCIe x16 2.0 slot
Storage	1 x M.2 Socket, Supports 2260/2280 SSD 4 x SATA 6Gb/s Ports
USB	4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board) 6 * USB 2.0 port (2 at back panel, black, 2 at mid-board)
Memory Specifications
Memory Type	DDR4
Warranty Information
Warrantty	1 Year
