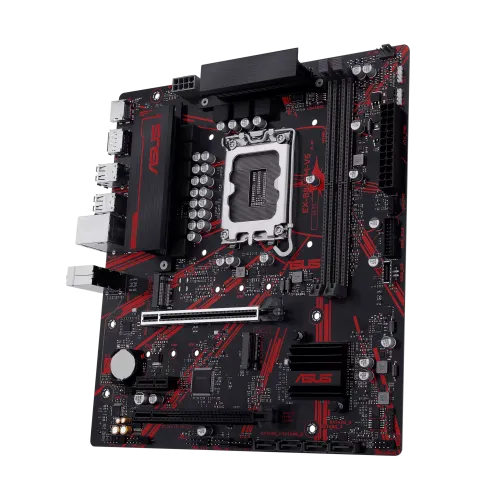

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard - Image 2

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard - Image 3

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard - Image 4

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard - Image 5

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard

Original price was: ৳ 22,570.Current price is: ৳ 20,800.

Key Features

Model: EX-B860M-V5
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 2x DDR5, Max 128GB, 8800+MT/s (OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
Features: 2x M.2, Realtek 2.5Gb LAN

Chat Through WhatsApp

Category: Asus (Intel)

Description
Reviews (0)

Specification

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset	INTEL B860
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI	Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
M.2 Socket	2x M.2
Memory
Type	DDR5
Slots	2
Supported Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory	Maximum Memory Capacity 128GB
Graphics
Graphics	1 x DisplayPort 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors’ or graphic cards’ resolution.
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4a
USB (s)	Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	SATA RAID 0/1/5/10
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header
Others
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage protection – SafeSlot Core+ – Stainless-steel back I/O ASUS Q-Design – Q-Dashboard – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – ProCool Non-stop Action – Lightning Boot Non-stop Challenger – ASUS iCafe labs certified Non-stop Durability – Luminous anti-moisture coating – USBGuard
Warranty Information
Manufacturing Warranty	3 Year warranty
